IQon Spectral CT
headerl background image

Certainty
lives in

layers

    As the world’s first spectral detector-based CT, the Philips IQon Spectral CT delivers multiple layers of retrospective data in a single, low-dose scan, empowering you to improve clinical confidence that may impact your quality outcomes.

    Explore how with the IQon Spectral CT:

    *

    聯絡資訊

    * 此欄位為必填

    *
    *
    *
    *
    *
    *
    *
    *
    *

    通過指定您的聯繫原因,我們將能夠為您提供更好的服務。

    We work with partners and distributors who may contact you about this Philips product on our behalf.

    *
    *

    Final CEE consent

    *

    聯絡資訊

    * 此欄位為必填

    *
    *
    *
    *
    *
    *
    *
    *
    *

    通過指定您的聯繫原因,我們將能夠為您提供更好的服務。

    We work with partners and distributors who may contact you about this Philips product on our behalf.

    *
    *

    Final CEE consent

    The first exam is the right exam.



    Conventional CT scans often produce ambiguous or inaccurate data that can require additional testing. To provide better patient experiences* and improve clinical outcomes while achieving the economic objectives of your organization, there’s a clear advantage to making the right diagnosis in the first scan.

    video thumbnail

    Spectral Magic Glass

    Spectral Magic Glass enables simultaneous viewing of up to five different spectral results.

    Patient, who was previously diagnosed with hepatic cell carcinoma and liver cirrhosis, underwent ablation to treat the hepatic lesions. Ablation effectiveness following treatment was a concern. The following images were taken on the Philips IQon Spectral CT. The conventional CT image shows what could be a suspicious area in the liver. However, further enhancement was needed to better visualize the possible lesion. Normally, this patient would require additional scanning, such as MR or ultrasound.

    Conventional CT MonoE 45 keV
    MonoE 45 keV Z Effective

    Spectral Monoenergetic (MonoE) Image

    This 45 keV MonoE image reveals visualization of a suspected lesion. An additional scan is not needed to confirm.

    Z Effective Spectral Results

    In the Z Effective spectral image, you can visualize iodine uptake, adding another layer of information. Because spectral information is always on with the IQon Spectral CT, this additional information is available whenever a deeper analysis is needed.

    You’ll have the answers for your most challenging cases.



    The Philips IQon Spectral CT helps you extend the benefits of spectral data to all patients, providing answers for even the most challenging scenarios. Being able to achieve diagnostic confidence, in even the most problematic situation, can help you provide better patient experiences* and improve clinical care.

    video thumbnail

    Dr. Suhny Abbara

    Chief of Cardiothoracic Imaging at UT Southwestern Medical Center discusses the exciting capabilities of the IQon Spectral CT scanner.

    Patient admitted to the Emergency Department complaining of shortness of breath was scanned on the IQon Spectral CT.

    Conventional CT Iodine Overlay Image
    Conventional CT Z Effective

    Conventional CT images showed a small pulmonary embolism in the right lower lung.

    To confirm, clinician was able to utilize spectral images such as Iodine Overlay and Z effective, which are available every time a patient is scanned on the IQon.

    The advancements are powerful–
    the workflow is the same



    The Philips IQon Spectral CT and the Spectral Diagnostic Suite easily and fully integrate into your current workflow.

    video thumbnail

    Magic Glass on PACS app

    Magic Glass on PACS app offers a simple interface that integrates into your current workflow with little to no training.

    PHIL_Infographic1

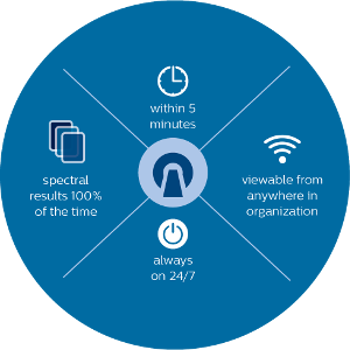

    Now, every technician can acquire spectral data with every scan—data that can be viewed by physicians and care teams across your organization to help determine the best path for patient care.

    Spectral Diagnostic Suite

    A suite of advanced visualization applications for the Philips IQon Spectral CT, the Spectral Diagnostic Suite delivers advanced
    spectral and clinical application tools, including Spectral Magic Glass and the Spectral Magic Glass on PACS app.

    clinical image

    Spectral Magic Glass

    In addition to conventional CT images, Philips Spectral Magic Glass enables on-demand simultaneous viewing and quick comparison of up to five different spectral results for a region of interest, including Monoenergetic, Iodine Density, Virtual Non-contrast, Iodine no Water, and Z Effective maps.

    Spectral product image

    Spectral Magic Glass on PACS app

    The Spectral Magic Glass on PACS app conveniently launches directly in the user’s PACS viewing setup. Spectral Magic Glass on PACS is only available with the IQon Spectral CT and offers a simple interface that seamlessly integrates into your organization’s current workflow with little or no training.

    Low-dose solutions delivering on quality measure

    With the Philips IQon Spectral CT, you’ll have the full use of dose management tools—like iterative model reconstruction (IMR)

    and 3D dose modulation—allowing you to experience all the benefits of spectral data at the same dose levels as a

    conventional CT scan.

    How it works

    The IQon Spectral CT adds spectral resolution to traditional CT scanning through a new dual-layer spectral detector. With a Yttrium- based scintillator, the NanoPanel prism detector identifies photons of high energy and low energy simultaneously, allowing you to not only view anatomy, but also use color to characterize the material content of critical structures.

    video thumbnail

    Spectral Results Anytime, Anywhere. Single DICOM entity contains sufficient information for retrospective analysis.

    video thumbnail

    The IQon Spectral CT generates high light output and reduces image noise at low energy. See how advances in material science and nanotechnology enhance spectral detector capabilities.

    Contact Us



    Please contact us for more information
    about the IQon Spectral CT scanner.

    Econtact icons
    *

    聯絡資訊

    * 此欄位為必填

    *
    *
    *
    *
    *
    *
    *
    *
    *

    通過指定您的聯繫原因,我們將能夠為您提供更好的服務。

    We work with partners and distributors who may contact you about this Philips product on our behalf.

    *
    *

    Final CEE consent

    *The Centers for Medicare & Medicaid Services requires United States hospitals that treat Medicare patients to participate in the national Hospital Consumer Assessment of Healthcare Providers and Systems (HCAHPS) survey, a standardized tool that measures patients’ experience of hospital care. Results collected for public reporting are available at medicare.gov/hospitalcompare.
